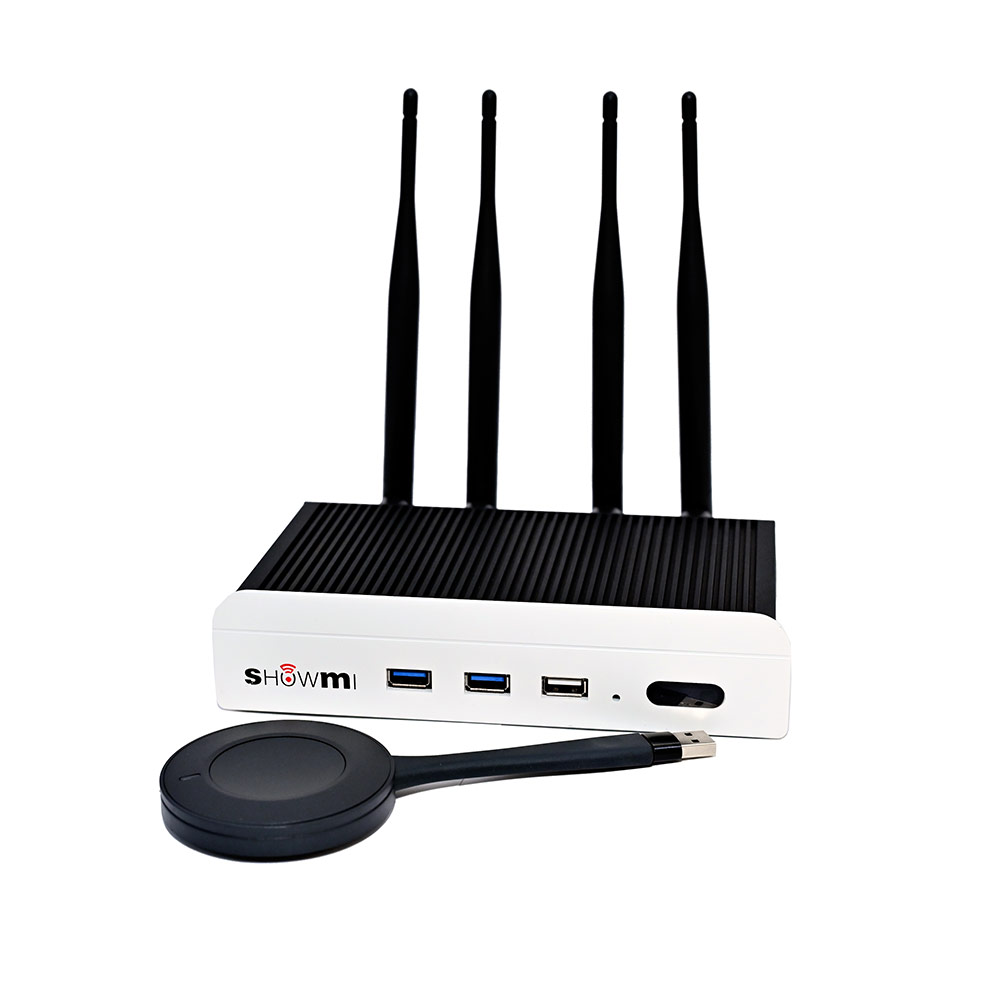

| Model | Showmi 109A | ||
| Support System | Windows 7/8/10 /11 | ||
| Resolution |
3840x2160 4K 60Hz,1920*1200,1920*1080、1366*768、1360*768、1280*800、 1280*720 1024*768 |
||
| Delay time | 100~200ms | ||
| Display mode | Support extend screen | ||
| Touch Back Control | Support Mouse mode return | ||
| Connection paths number | 128 | ||
| The most Qty display screen | 9 Screens | ||
| Touch Back Control |
Support 10 fingers touch returns Windows 7/8/10 Support mouse mode return（Mac） |
||
| Wireless Speed | TX 300Mbps | ||
| Wireless Protocol | IEEE 802.11 a/g/n/ac | ||
| Channel | 5.8G, Multi-channel Selection | ||
| Phones Wireless Mirroring | |||
| Dual Wi-Fi | 5.8G Hotspot &5.8G Wi-Fi working at same time, While mirroring, the phone can go surfing. | ||
| Other Functions | |||
| Rotating | Support 90° 180°270° photos Rotating | ||
| Video/Audio | |||
| Video decoding | Support H.264,H.265,VP8,RV,WMV,AVS,H.263,MPEG4 | ||
| Operation System | |||
| System version | Android 11 | USB | USB*3 |
| CPU | ARM Cortex A55 x 4 | HDMI output | 1 (4k 60hz) |
| DDR | 2G DDR3 | HDMI Input | 1 (4K 30Hz) |
| Flash Memory | 8G Flash | Wi-Fi | 5.8G+5.8G |
| Audio | 3.5mm | Lan | RJ45*1 |
| RS232 | 2 | ||
Provide an immersive experience with 4K resolution, up to 40 points of touch, a built-in top-oriented sound bar and microphone array, and a convenient camera USB port location.
| Size: | 86″ |
| Screen Type: | LED |
| Aspect Ratio: | 16:9 |
| Display Area: | 74.61″ x 41.97″ |
| Resolution: | 3840(H) x 2160(V) Ultra HD |
| Pixel Pitch: | 0.4935 mm x 0.4935 mm |
| Back Light Unit: | Direct type LED |
| Response Time: | 6.5 ms |
| Refreshing Frequency: | 60Hz |
| Display Color: | 1.07B (10 bit) |
| Brightness: | 350 cd/m2 |
| Static Contrast Ratio: | 1200:1 |
| Dynamic Contrast Ratio: | 4000:1 |
| Viewing Angle: | 178° |
| Life Time: | ≥50,000 hours |
