20X Optical Zoom Lens
Bring distant subjects closer with 20X optical zoom. Capture speakers and presentation details clearly from across the room. Ideal for auditoriums, lecture halls, and conference rooms.
Experience crystal-clear video with advanced 4K resolution and wireless connectivity. Ideal for conference rooms, classrooms, live streaming and professional video production.

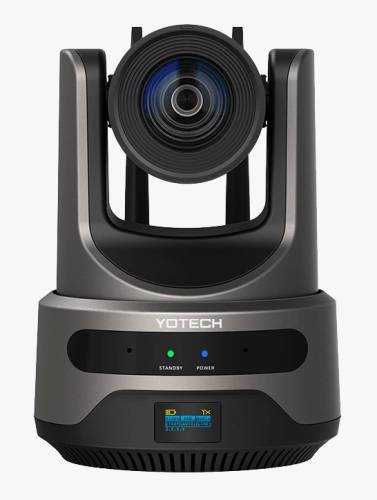

The Yotech 4K Wireless PTZ Camera delivers sharp 4K UHD video with smooth pan, tilt, and zoom control for professional video communication. Wireless connectivity helps reduce cable dependency and keeps meeting and presentation spaces cleaner. With optical zoom, autofocus, pre-set positions, low light performance, and remote control, it provides clear and flexible camera coverage for conference rooms, classrooms, training spaces, and live presentations.
Bring distant subjects closer with 20X optical zoom. Capture speakers and presentation details clearly from across the room. Ideal for auditoriums, lecture halls, and conference rooms.
Delivers Sharp 4K UHD video at 3840 x 2160 for clear, detailed visuals. The UHD CMOS sensor maintains natural image quality for professional video use. Also supports resolution such as 1080p and 720p for flexible applications
Smart Reid-based tracking identifies and follows the presenter automatically. Keeps the speaker centered while they move around the room. Quickly detects and resumes tracking if the presenter leaves and re-enters the frame.
Provides stable wireless video transmission using 2×2 MIMO and beam forming technology Supports transmission speeds up to 300 Mbps and a range of up to 200 metres Designed for flexible camera placement without depending on long video cables
Control the camera conveniently through wireless, RS485, network, or USB connections Adjust camera movement and settings without operating the unit manually Multiple control options make integration easier in different AV environments
The integrated lens sunshade helps reduce glare and unwanted light entering the lens Maintains better image clarity in bright or strongly lit environments Especially useful for outdoor or high-light wireless video applications
Supports H.264 Slice Encoding for efficient video compression and streaming Helps deliver stable, high-quality video while reducing transmission requirements Suitable for professional USB conferencing and video communication applications
Features a built-in 9450 MAH lithium battery for convenient wireless operation The low-power design provides up to 6 hours of continuous use It allows flexible camera placement without requiring a constant power connection
A high-quality CMOS sensor helps capture clearer images in low-light conditions 2D and 3D noise reduction reduces visible grain and image noise This keeps video cleaner and more detailed when room lighting is limited
Technical Specifications
| Specification | Details |
|---|---|
| Camera Type | 4K Wireless PTZ Camera |
| Resolution | 4Kp30, 4Kp25, 1080p30, 1080p25 |
| Optical Zoom | 20X |
| Digital Zoom | 16X |
| Image Sensor | 1/1.8" CMOS, Effective Pixels: 8.42 MP |
| Lens | f = 6.25mm–125mm, F1.58–F3.95 |
| Field of View | Horizontal: 60° to 3.5°; Vertical: 35.7° to 2.0° |
| Video Compression | H.265 / H.264 / MJPEG |
| Pan / Tilt Range | Pan: ±170°; Tilt: -30° to +90° |
| Interface | HDMI 1.4b, USB 3.0 Type-C, LAN, RS485, Line In |
| Wireless Features | 2×2 MIMO, Beamforming, up to 300 Mbps, up to 200 m transmission |
| Network Mode | Point-to-point, Point-to-multipoint |
| Preset Positions | Up to 255 |
| Battery | Built-in 9450mAh Lithium Battery |
| Power Supply | DC 12V |
| Supported Operating Systems | Windows 7 / 8 / 10 / 11, macOS X, Linux, Android |
| Operating Temperature | -10°C to 40°C |
| Dimensions | 143mm (W) × 189.3mm (D) × 201.6mm (H) |
| Net Weight | 1.9 kg |
Yes. It features a 20X optical zoom lens, allowing users to capture distant speakers, presentation areas, or subjects while maintaining image clarity.
Yes. The camera supports HDMI 1.4b, which allows direct output of uncompressed 4K video to compatible displays, recorders, and AV systems.
Yes. In addition to the built-in battery, the camera supports an external 12V power supply, giving users flexibility for both portable and fixed installations.
The supplied lens sunshade helps reduce glare and prevents strong or stray light from entering the lens. This helps maintain clearer visuals when the camera is used in brightly lit environments.
H.264 Slice Encoding divides video data into smaller sections for more efficient processing and transmission. It is particularly useful for professional USB conferencing and high-quality video applications.
The camera can be used for conference rooms, training sessions, classrooms, auditoriums, live presentations, events, and professional video production where flexible camera positioning and wireless transmission are required.
Provide an immersive experience with 4K resolution, up to 40 points of touch, a built-in top-oriented sound bar and microphone array, and a convenient camera USB port location.
| Size: | 86″ |
| Screen Type: | LED |
| Aspect Ratio: | 16:9 |
| Display Area: | 74.61″ x 41.97″ |
| Resolution: | 3840(H) x 2160(V) Ultra HD |
| Pixel Pitch: | 0.4935 mm x 0.4935 mm |
| Back Light Unit: | Direct type LED |
| Response Time: | 6.5 ms |
| Refreshing Frequency: | 60Hz |
| Display Color: | 1.07B (10 bit) |
| Brightness: | 350 cd/m2 |
| Static Contrast Ratio: | 1200:1 |
| Dynamic Contrast Ratio: | 4000:1 |
| Viewing Angle: | 178° |
| Life Time: | ≥50,000 hours |
